The Correct system for removal of Frozen Nuts



Features :-
RAPID :- The fastest system for cutting 3" Nut is just 20-30 Seconds & by using torch, chisel or hammer it take approx. 20 minutes to complete the process.

DAMAGE CONTROL :- Only the Nut is been cut without damaging the Bolt or Stud threads by calibrating the chisel.

SAFETY :- It is the most safe system without any hammers, flying fragments, flames, sparks, or volatile surrounding.

WORKING CONDITION :- It is easy to move Up , Down, & Away with 4-5 minutes of time.

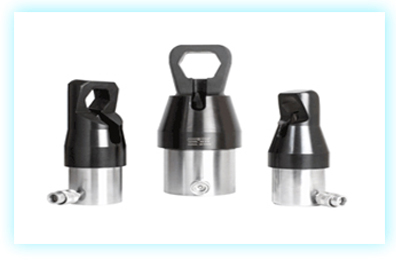

Nut Splitter
Model - BS-105 to 506

Angle Headed Nut Splitter
Model - BS-100AH to 314AH.

Angle splitter sizes will be quoted upon request.

NUT SPLITER:- Model –BS-105 to Model-506

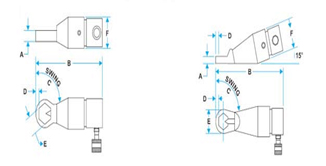

Model No. Stud Diameter Nut A/F A B C D E F Weight
mm inch Mm inch mm Mm Mm mm mm Kg lbs
BS-105 11-22 7/16-7/8 16-36 5/8-1.7/16 38 271 *60 10 38 105 9.82 21.6
BS-200 22-32 7/8-1.1/4 36-51 1.7/16- 2 38 287 *45 13 54 108 10.42 22.9
BS-204 32-38 1.1/4 -1.1/2 46- 60 1.13/16 -2.3/8 57 385 *30 14 64 164 32.5 71.5
BS-210 35-45 1.3/8-1.3/4 57-57 2.1/4 - 2.3/4 57 398 *30 18 73 164 32.86 72.3
BS-308 45-57 1.3/4-2.1/4 70-89 2.3/4 - 3.1/2 78 460 *30 19 99 214 72.12 158.66
BS-314 50-64 2-2.1/2 79-98 3.1/8 - 3. 7/8 80 488 *30 22 108 214 74.52 163.94
BS-404 64-70 2.1/2-2.3/4 95-108 3.3/4 - 4.1/4 95 579 *60 29 118 251 114.18 251.2
BS-500 76-83 3-3.1/4 114-127 4.1/2 -5 105 590 *60 29 137 251 116.62 256.56
BS-506 83-89 3.1/4 - 3.1/2 124-136 4.7/8 - 5.3/8 105 598 *60 29 149 251 119.5 262.9



Angle splitter sizes will be quoted upon request.


Model No. Stud Diameter Nut A/F A B C D E F Weight
mm Inch mm inch mm mm mm mm mm kg lbs
BS-100AH 11-16 7/16-5/8 13-24 1/2-1 18 190 *30 6 65 72 7 3.2
BS-105AH 11-22 7/16-7/8 16-36 5/8-1.7/16 38 280 *60 10 70 105 9 20
BS-200AH 22-32 7/8-1.1/4 35-51 1.7/16-2 38 290 *45 13 95 1078 10 22
BS-204AH 32-38 1.1/4-1.1/2 46-60 1.13/16-2.3/8 57 410 *30 15 108 164 24 60
BS-210AH 35-45 1.3/8-1.3/4 57-70 2.1/4-2.3/4 57 420 *30 18 130 164 26 66
BS-308AH 45-57 1.3/4-2.1/4 70-89 2.3/4-3.1/2 78 500 *30 20 160 214 44 96
BS-314AH 50-64 2-2.1/2 79-98 3.1/8-3.7/8 80 510 *30 23 175 214 46 100

Note :- Any application not covered by the above above models just call us so that we will probably be able to design a model for you.




NUT SPLITTERS


Nut Splitters Vs Other System :-

FLEXIBILITY :- Bhartiya make nut splitter are manufacture which can be fitted to all ANSI, API flanges & all bonnets valves for cutting any kind of shape i.e Square, Hex, & 12 Point. Our Housing is designed is such a way that fits to all applications & unable to work from various angles & places.

POWER :- Bhartiya make nut splitter are based on power to weight ration for easier handling.

DURABILITY :- Bhartriya make nut splitter are process through high cryogenic & heat treatment process for long lasting of the equipment.

PRECISE :- A suitable Holder can be calibrated to Chisel for cutting the nut wall, which prevents damage to stud, bolt, equipments & Nut splitter.

WARRANTY :- Bhartiya make nut splitter give warranty for any manufacturing or material defect for 6 month.

COSTING :- Our Prices are most competitive affordable in the world.

NUT SPLITTER'S PART LIST :-

Type -1
Nut Splitter of Chisel holders are with externally threaded used in nut splitter with internal threads in the piston rod.

Type -2
Nut splitter have cylinder with threaded bolt holes in the piston rod & chisel holders that Use socket head cap screw.

Note : Common parts are indicated in shades overlapping in to multiple model numbers.
